AED183 BMS 42/200/100
The AED183 BMS mixing and supply system has been specifically designed to supply sprayers in forging operations, the harsh conditions have been taken into account in the design. The system is specifically designed to handle water-based, concentrated, pigmented release agents with a maximum viscosity of 3000mPas. It enables precise mixing and preparation according to the preparation recommendations of the process release agent.

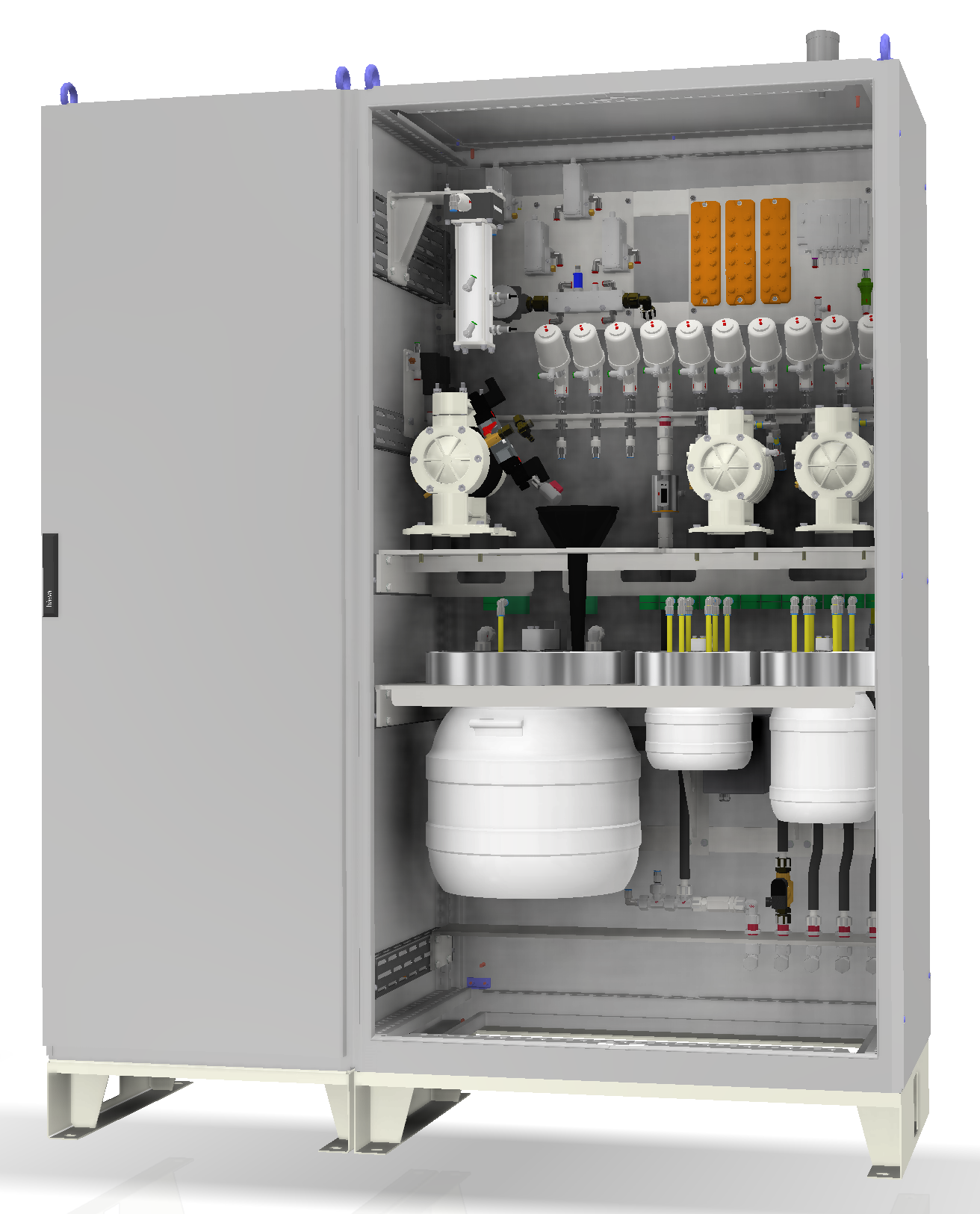

AED183 BMS 42L
Features
- Tanks made of plastic
- All media lines and screw connections made of plastic or VA
- Piston diaphragm pumps for dosing, circulating and conveying
- Circulation to avoid settling
- Easy to maintain due to clear arrangement of components, removable and replaceable tanks.
- Connection for flow and return allow a ring line to the sprayer
During the development, care was taken to ensure that the product and the mixture are constantly in motion in order to avoid settling.
Options
- Collecting tray according to WHG
- Connection for hand spray gun

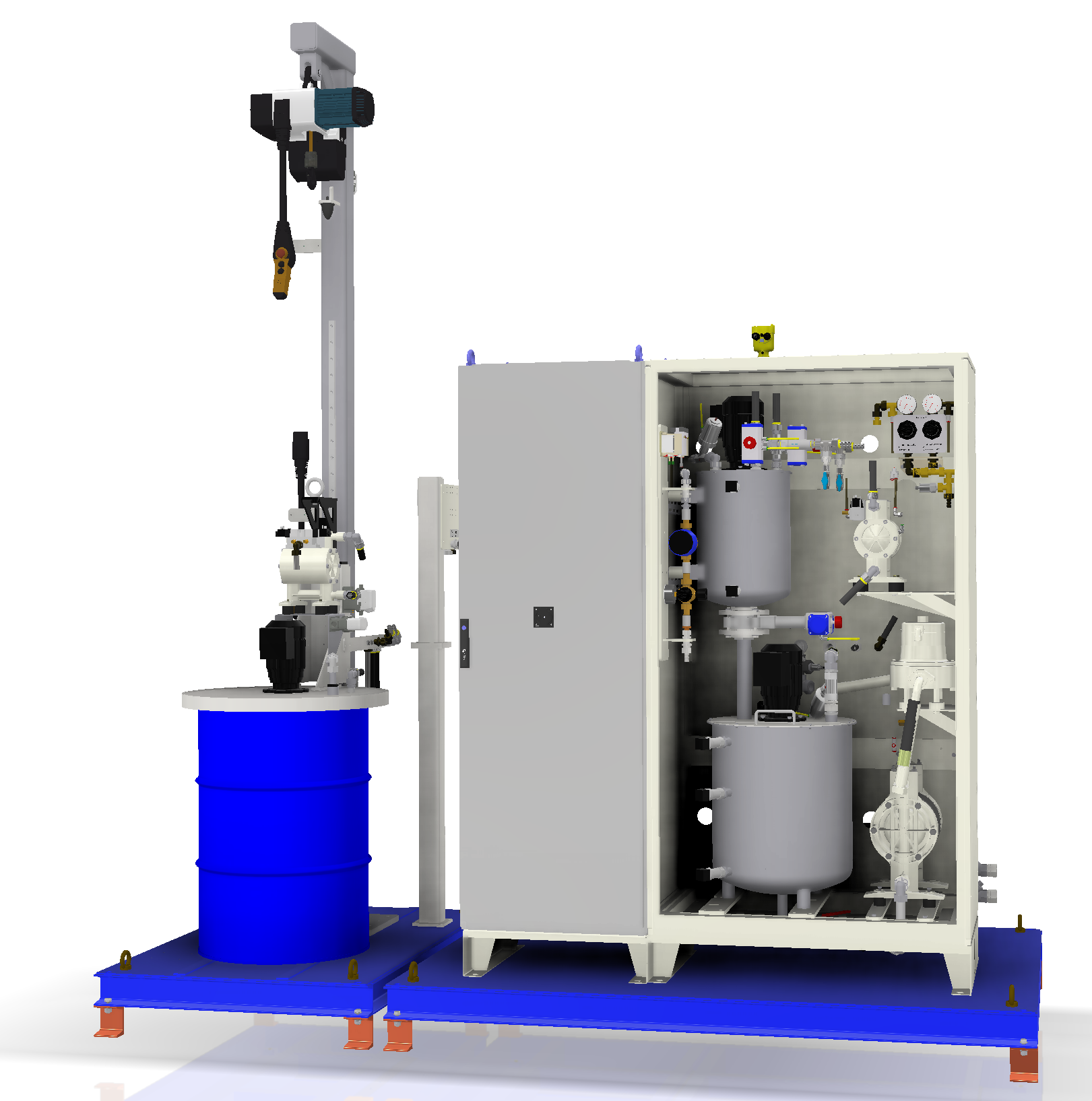

AED183 BMS 200L
Features
- Separating agent receiver, mixing tank and mixture tank made of V2A
- All media lines and screw connections made of plastic or VA
- Piston diaphragm pumps for dosing, circulating and conveying
- Circulation to prevent settling
- Easy to maintain due to clear arrangement of components
- Connection for flow and return allow a ring line to the sprayer
- Lift system for standard 200l drums
Options
- Collecting tray according to WHG
- Connection for manual spray gun
- Large pressure pump for higher delivery capacity
- 2 mixture tanks (different concentrations for the same separating agent)

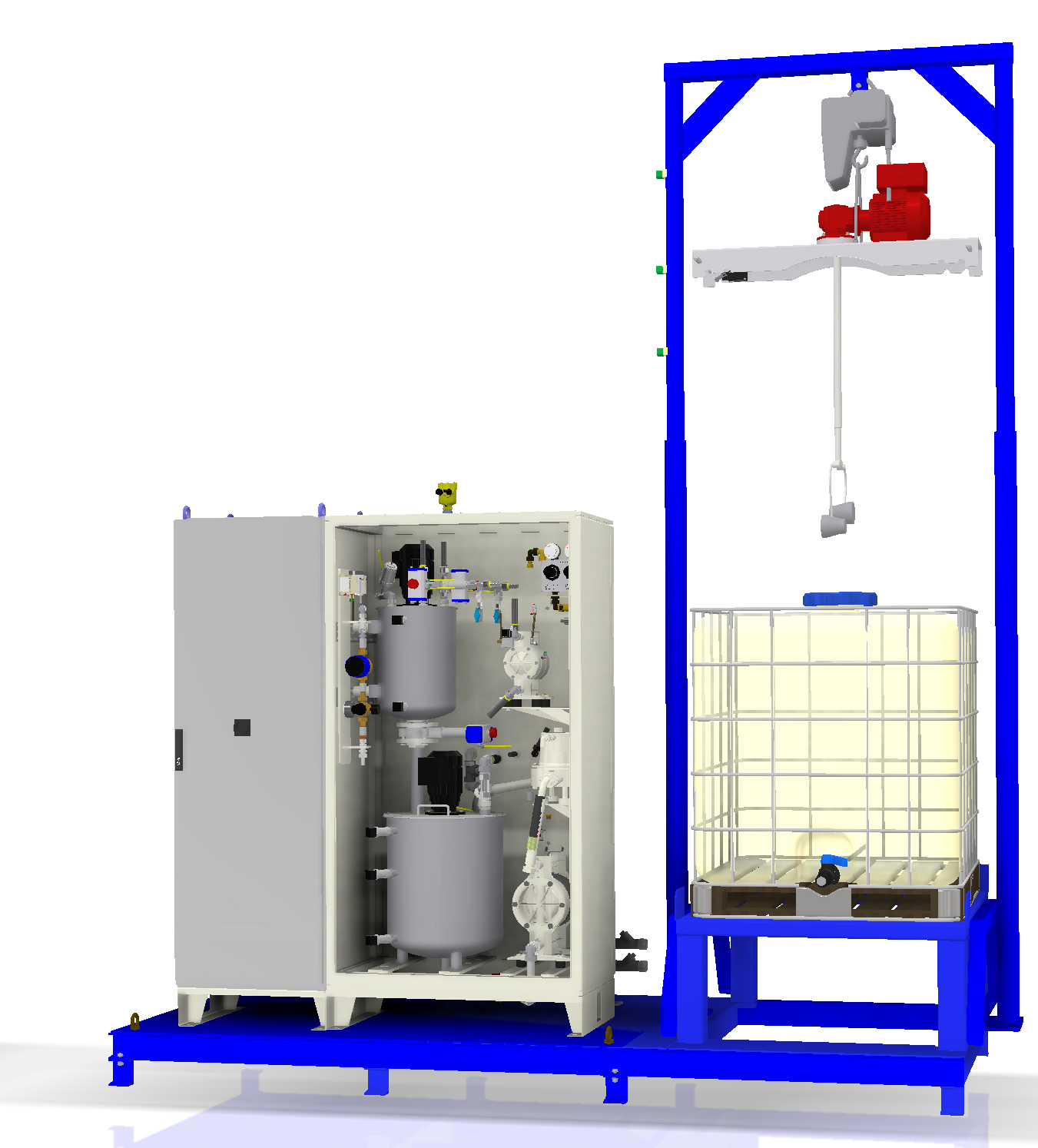

AED183 BMS 1000L
Features
- Separating agent receiver, mixing tank and mixture tank made of V2A
- All media lines and screw connections made of plastic or VA
- Piston diaphragm pumps for dosing, circulating and conveying
- Circulation to prevent settling
- Easy to maintain due to clear arrangement of components
- Connection for flow and return allow a ring line to the sprayer
- Lift system with agitator for standard 1000l IBC containers
Options
- Collecting tray according to WHG
- Connection for hand spray gun
- Larger pressure pump for higher delivery capacity
- 2 mixture tanks (different concentrations with the same separating agent)
