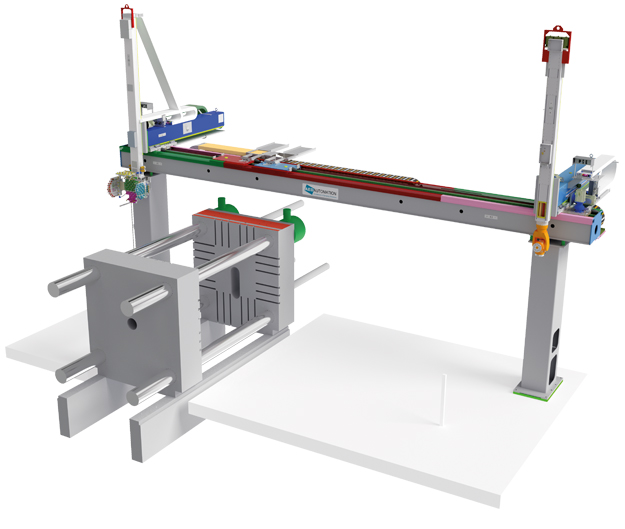

DAG 1200 Gantry
- Our DAG 1200/1100 gantry systems are built with the know-how from more than 20 years of experience.
- Especially for big PDC machines this system has a lot of advantages. The process of die cooling, lubricant film formation and part handling is perfectly integrated in one system.
- DAG 1100 is a cost effective solution with a combined gripper/spray-tool solution mounted on one linear system.
Features
- 3-axis linear spraying system with enhanced media supply structure and a payload of 150 kg

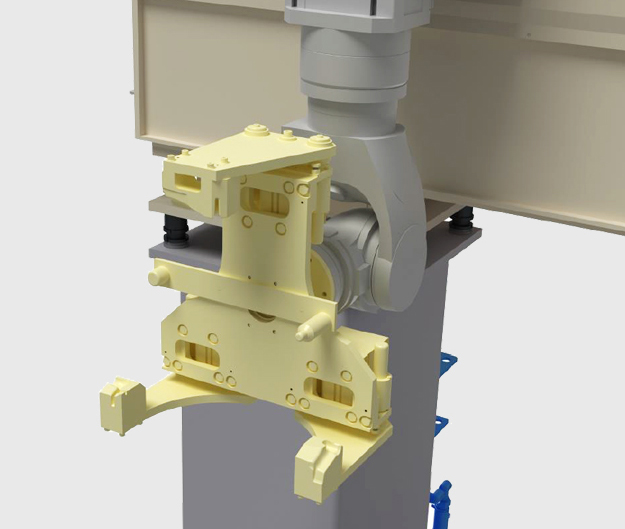

- 5-axis handling system - with included KUKA robot hand (150 kg)
- Effective and gentle gripper-system for safe and part-compatible handling
- Rugged design for long-life performance and low maintenance requirements
- Low bend of frames for high accuracy
- Network-compatible control technology with Windows® user interface Spraying software integrated in KUKA KRC 2/4 software for simple programming, monitoring and optimization of the complete system
- Graphical human machine interface
- High level of process control for fast and effective die treatment
- Single sourcing for spraying and handling
- Increased productivity, reduced costs
- High casting quality
- Improved working conditions
Recommended Spraying Tools:

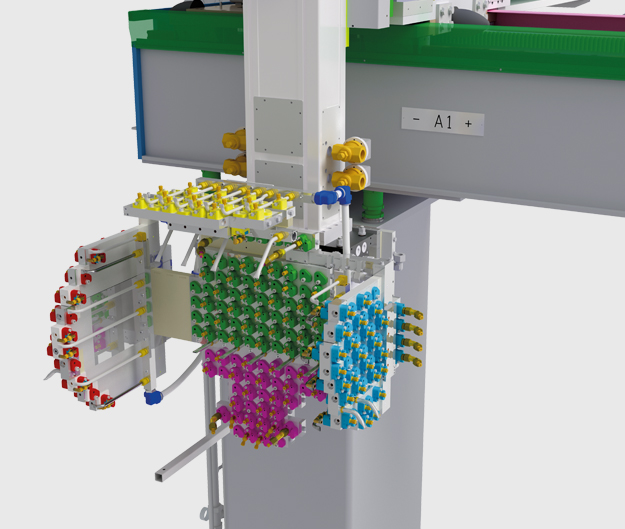

- Flextool FLT 8 DG
- DELTASPEED
Spraying Unit
| Feature | Data |
| Linear Axis | high quality THK guidings; corrosion protected |
| Payload (Standard) | 150 kg |
| Z-axis | ≤ 2500 mm |
| Y-axis | ≤ 2000 mm |
| Working Area (std) x – y - z | 3000 x 2000 x 2500 mm |
| Repeatability | ± 0,5 mm |
| Speed Axis | X: 1,65 m/sec. Y: 1,20 m/sec. Z: 1,65 m/sec. |
| Air connection | 2 x 1 1/2 " |
| Lubricant connection | 4 x 3/4 " |
Handling Unit
| Feature | Data |
| Linear Axis | high quality THK guidings; corrosion protected |
| Payload (Standard) | 150 kg (or higher) |
| Z-axis | ≤ 2500 mm |
| Y-axis | ≤ 2000 mm |
| Working Area (std) | x - y - z 6800 x 2200 x 2500 mm a - b - c ±360°, ±110°, ±360° |
| Repeatability | ± 0,5 mm |
| Speed Axis | X: 1,65 m/sec. Y: 1,20 m/sec. Z: 1,65 m/sec. |
