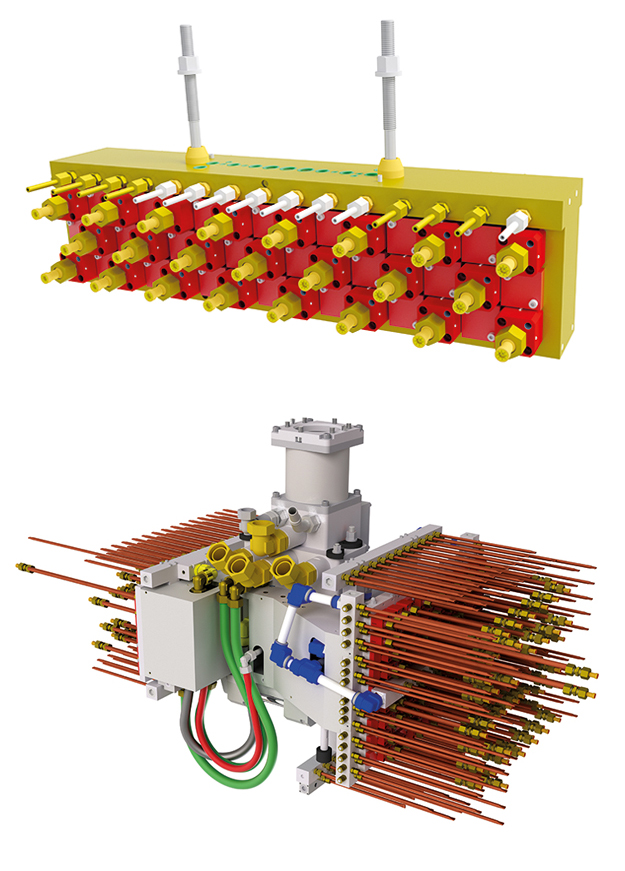

DELTACAST FCT

DELTACAST FCT SERIES

  • This tool generation has proven its high performance in numerous applications.
  • In combination with the AED 1000 LST series it provides industry standard spraying Technology at a reasonable pricing.
  • A broad range of additional, modular elements allows a good adaption to the individual needs of the die.
  • Three versions are available - each one corresponds with one size of AED 1000 LST. Expansion elements and various nozzle accessories allow to adapt the tool to the given die geometry.
  • Based on Deltacast technology, some highly specialized, very powerful spraying tools are available, e.g. the RSV 6 Series..

The Value

  • Shorter cycle times
  • Efficient, environmentally friendly lube spraying
  • High quality castings
  • Low lubricant consumption
DELTACAST FCT

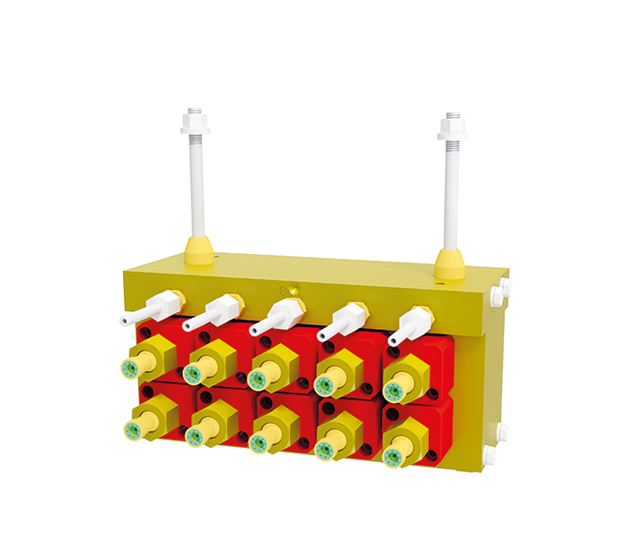

FCT 1
FCT 1

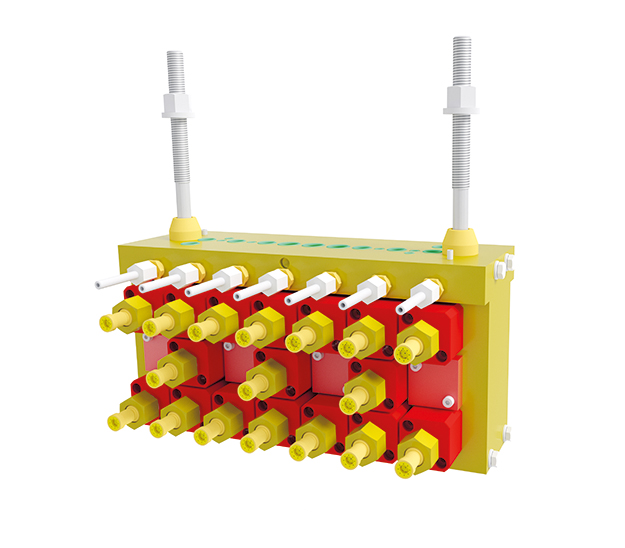

FCT 2
FCT 2

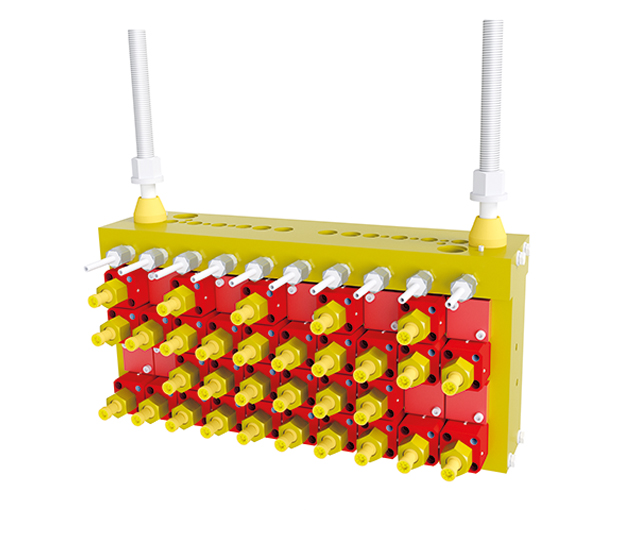

FCT 3
FCT 3
Deltacast Tool FCT 1 FCT 2 FCT 3
Circuits (Spray/blow) 4/2 6/2 8/2
Media 2 2 4
Fits with AED 1000 LST 1 AED 1000 LST 2 AED 1000 LST 3 & 4
Min. Length 190 255 363
Max. Length 540 780 1140
Max. No. of Nozzles 40 75 104
Weight (Std.) 10 15 25
